Parts of Modules

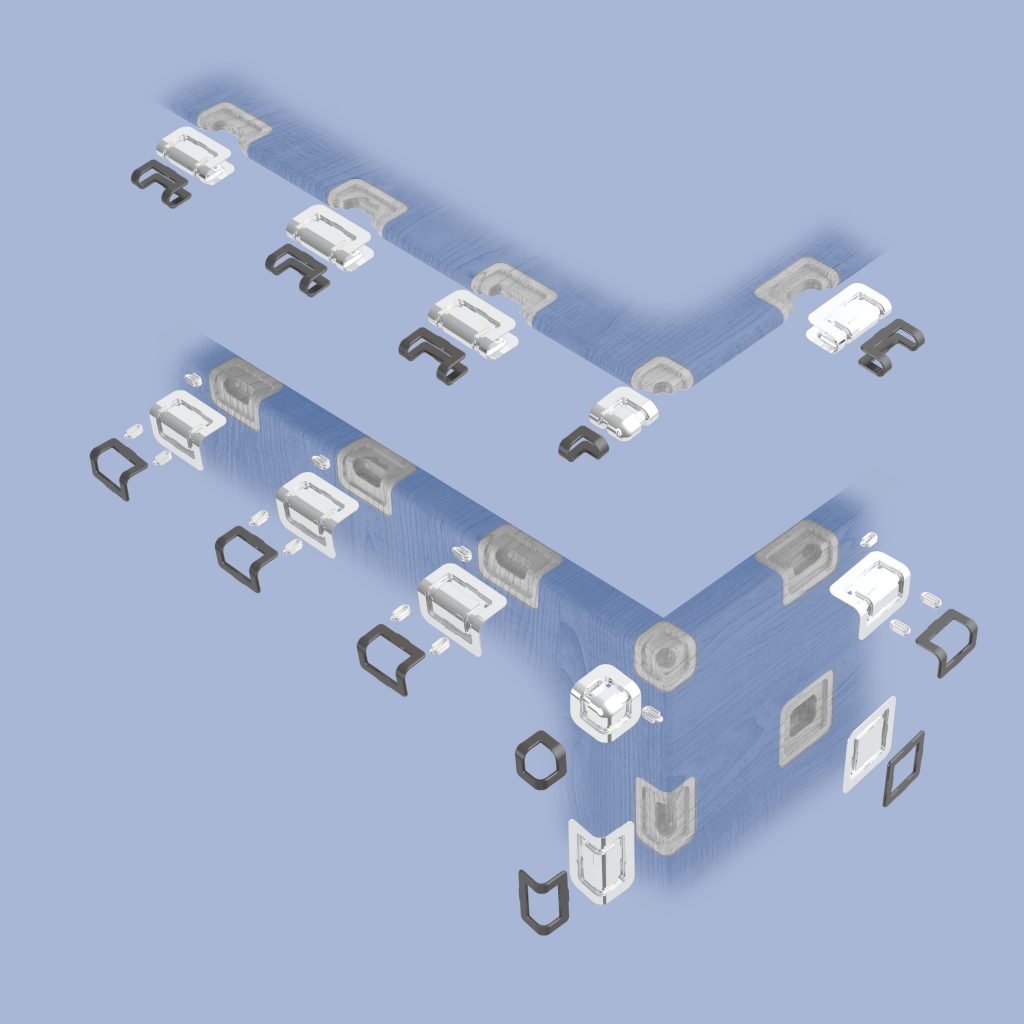

Metal Components

These are the component parts these files are without thickness and should be placed flush on top of the frame of the modules.

Rubber Components

Box Frame Parts

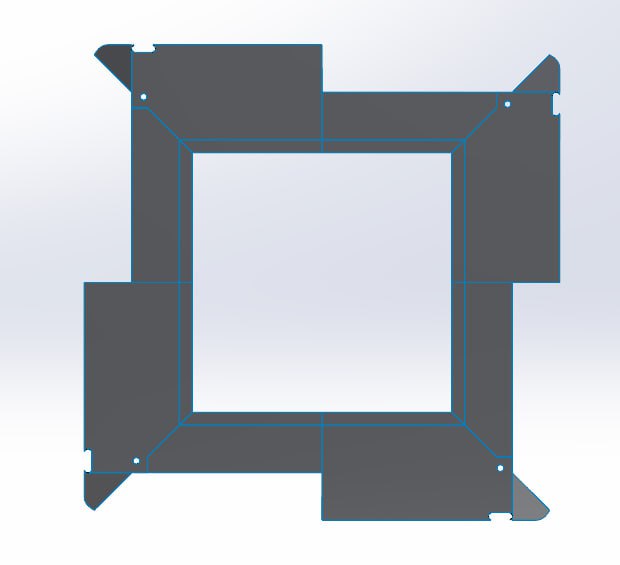

By connecting this parts you can build 3D boxes The one that contain front are to be used to build the frame of the box that is open in the front and where you should place a drawer or a door.
Here you find frames to build boxes up to 880 mm or 88 cm in size, if you need to build bigger box you need to develop your frame.

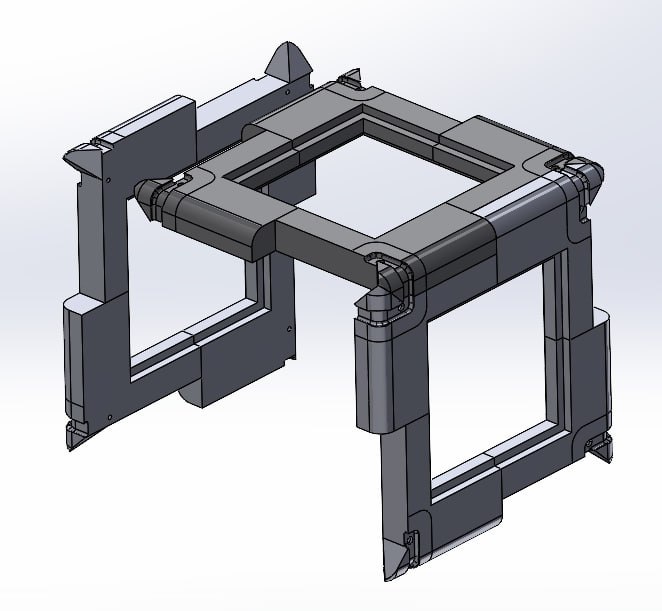

Refer to the following image to build the box frame, once you have the box frame completed you can connect perpendicularly another frame with 6 frames you build a box.

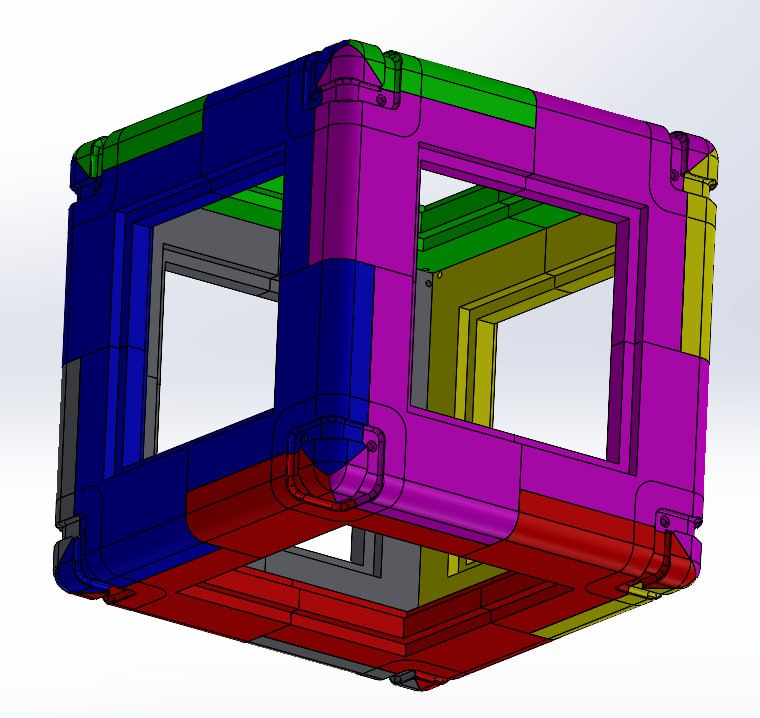

This box frame can be closed using the file 01.

This box has all 6 frame made to be closed, when is built a bigger box one of the frame should be made using the “front” named files so that the opening is good for a door or a drawer.

Board Frame Parts

Board Single Parts

just to ease your assembly work but remember to place the SMUPI component

Pillows

Theses are some of the possible size of the pillows.

The files are large because incorporate stitching, zipper and fabric rounded shape near the zipper line. The pillows can be made in any sizes as long as the width and the length are multiple of 22 cm, the high is always 22 and is where the zipper is installed.

Sample picture

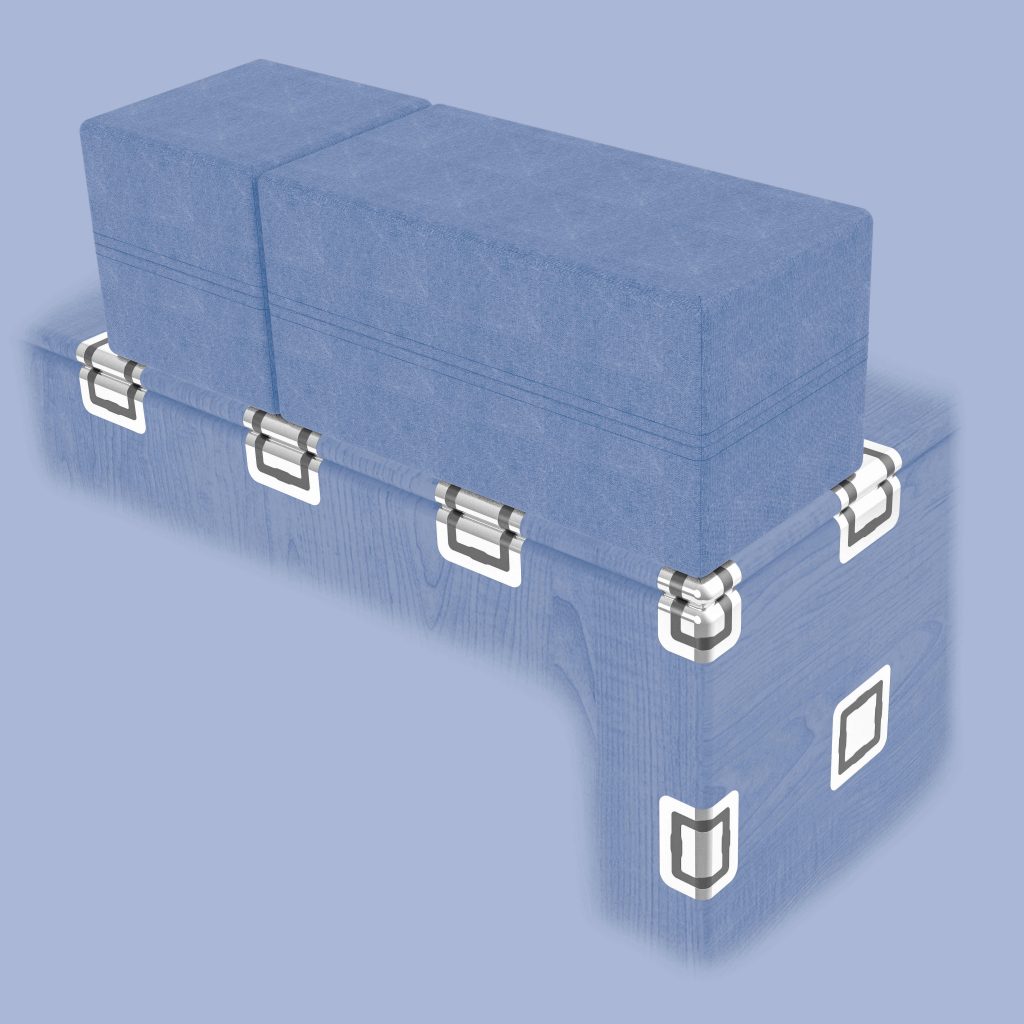

These picture will give clear ideas on how the parts are mounted on boards module on box modules and how is the look of the pillows including stitches and zipper position
